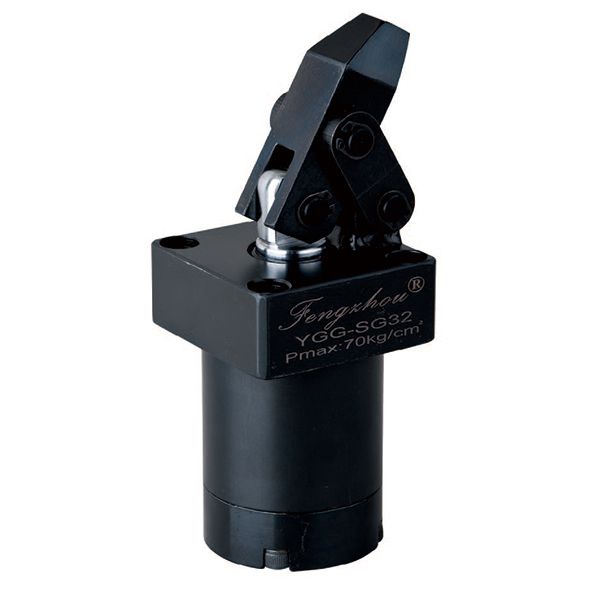

Hydraulic Link Clamp
These hydraulic link clamps are made to hold workpieces while the CNC machine is performing a machining operation. The operating pressure of the workholding clamp ranges from 2MPa to 7MPa.
Specifications
- Operating pressure: 2MPa-7MPa
- Inner diameter: Ø24, Ø25, Ø26, Ø30, Ø32, Ø35, Ø40, Ø44, Ø45, Ø50, Ø55, Ø56, Ø63, Ø68, Ø70, Ø80
- Mounting style: top flange/block
Features
- Compact design
The area under the flange has a minimized design, enabling a compact fixture design with reduced weight. - Forged integral body
The forged integral structure of link support and cylinder body offers high clamping force while giving a compact size. - Excellent coolant resistance
Unique sealing structure is designed to prevent high pressure coolant and cutting chips from entering inside the link clamp, achieving high sealing performance. - Three lever clamping directions
As viewed from the piping port side, Left (L), Center (C), Right (R). Three lever clamping directions provide high design flexibility. - Direct mount speed control valve
The adjustment of speed can be easily conducted by directly mounting speed control valve to improve synchronization.
Download Detailed Information & Specifications Here
-
Top Flange Hydraulic Link Clamp with Speed Adjustment -
Top Flange Hydraulic Double-Acting Link Clamp -
Top Flange Hydraulic Link Clamp
-
Top Flange Hydraulic Single-Acting Link Clamp
-

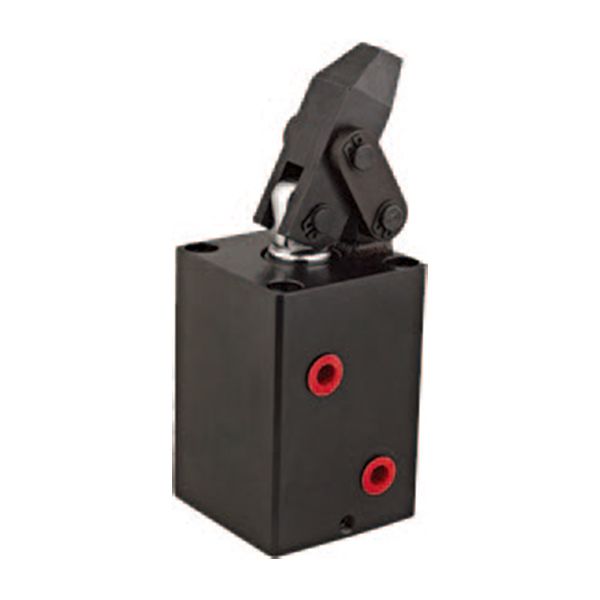

Block Type Hydraulic Link Clamp with Speed Adjustment -
Block Type Hydraulic Link Clamp with Pipe Connection -
Block Type Hydraulic Link Clamp
