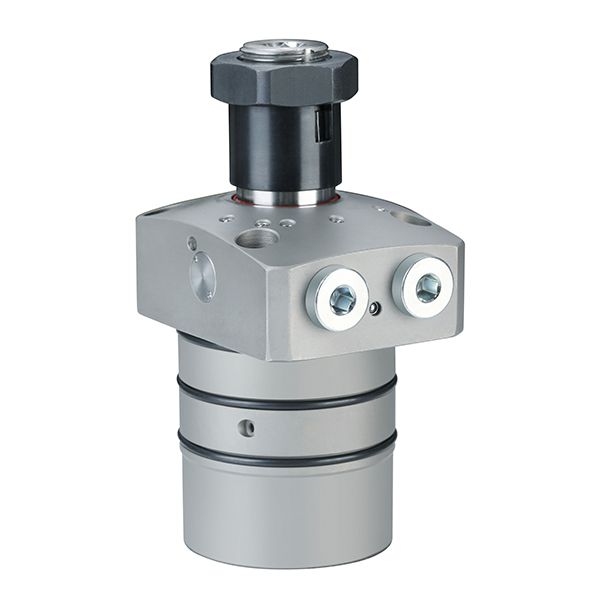

Air Sensing Swing Clamp

Air Sensing Swing Clamp

This type of swing clamp is designed with air leakage checking function by using air sensor to check clamping and unclamping conditions. The aim of our air sensing swing clamps is to keep workpieces firmly in place while CNC machine is performing machining operations. The operating pressure for these workholding clamps ranges from 1.5MPa to 7MPa.

Specifications
  • Operating pressure: 1.5MPa-7MPa
  • Swing angle: 30°, 45°, 60°, 90°
  • Inner diameter: Ø31, Ø37, Ø44, Ø51, Ø62
  • Mounting style: top flange
Request a Quote
Features
  • With action confirmation, workpiece loading and unloading can be done safely and reliably.
  • The workpiece motion and clamping faults can be accurately identified.
  • Built-in sensing valve enables small and thinner fixtures.
  • Unique sealing structure is designed to prevent high pressure coolant and cutting chips from entering, delivering excellent sealing effect.
Download Detailed Information & Specifications Here
HLHW0401, HLHW0481, HLHW0551, HLHW0651, HLHW0751

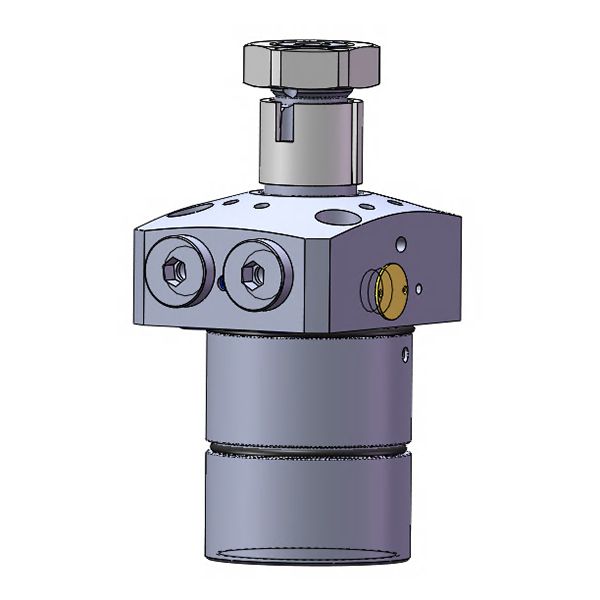

  • 2 Point Sensor Swing Clamp
    2 Point Sensor Swing Clamp

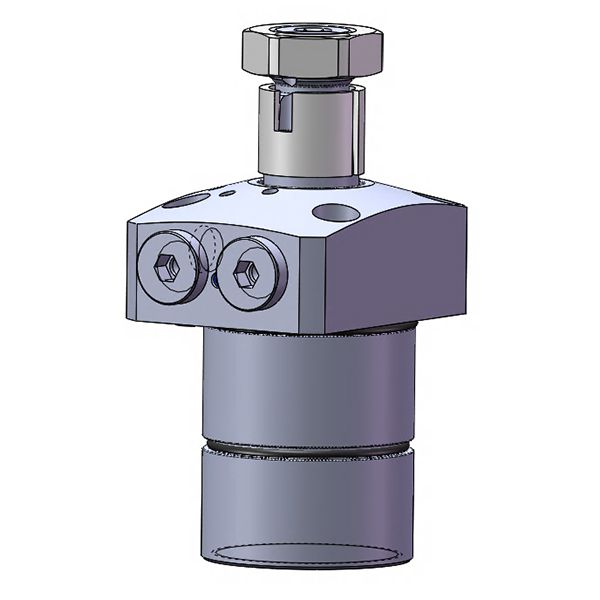

  • Unclamp Sensor Swing Clamp
    Unclamp Sensor Swing Clamp
  • Clamp Sensor Swing Clamp
    Clamp Sensor Swing Clamp
