High Pressure Swing Clamp
Our high pressure swing clamps are designed to hold workpieces during a machining operation on the CNC machine with operating pressure ranging between 7MPa and 35MPa.
Specifications
- Operating pressure: 7MPa-35MPa
- Swing angle: 30°, 45°, 60°, 90°
- Inner diameter: Ø18, Ø21, Ø24, Ø29, Ø34, Ø41, Ø48, Ø60
- Mounting style: top flange/bottom flange
Features
- Optimal design leads to high performance
The optimized design of each parts and long guide ratio enables high clamping force and high rigidity, and maximizes the useable range of the long clamping lever. - High durability suits high speed operation
The larger steel ball size and rod diameter result in high endurance. - Excellent seal prevents coolant entering
Unique sealing structure is designed to protect against high pressure coolant, achieving tight seal effect. - Speed control valve can be directly mounted
The adjustment of swing speed can be easily conducted by directly mounting speed control valve to improve synchronization.
Download Detailed Information & Specifications Here
-

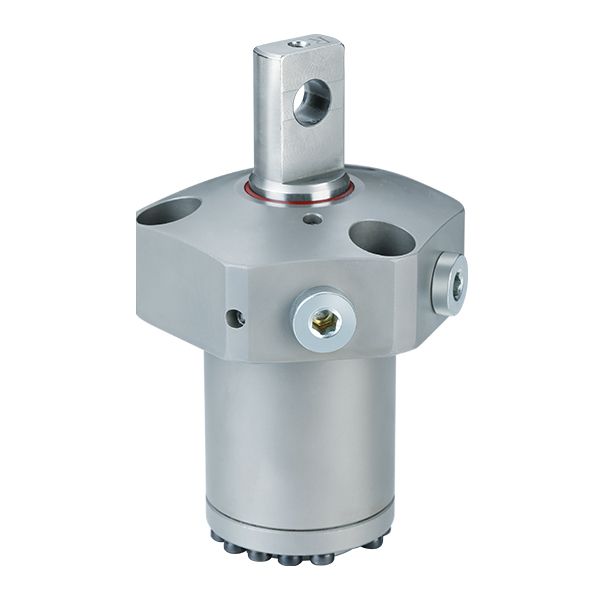

High pressure single-acting swing clamp with top flange -

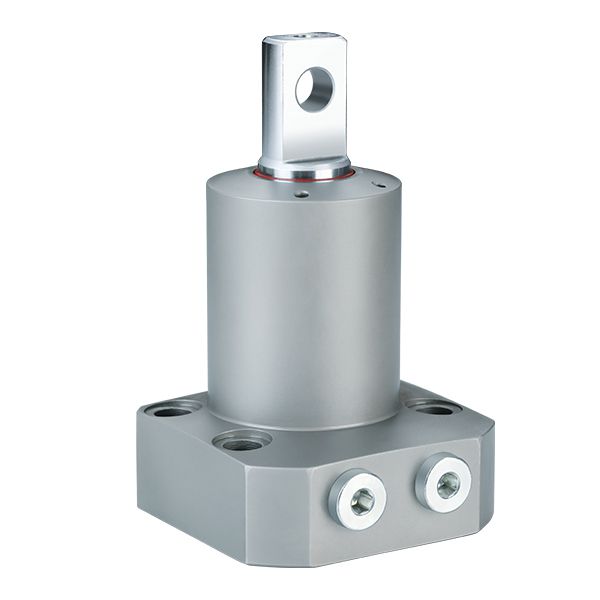

High pressure single-acting swing clamp with bottom flange -

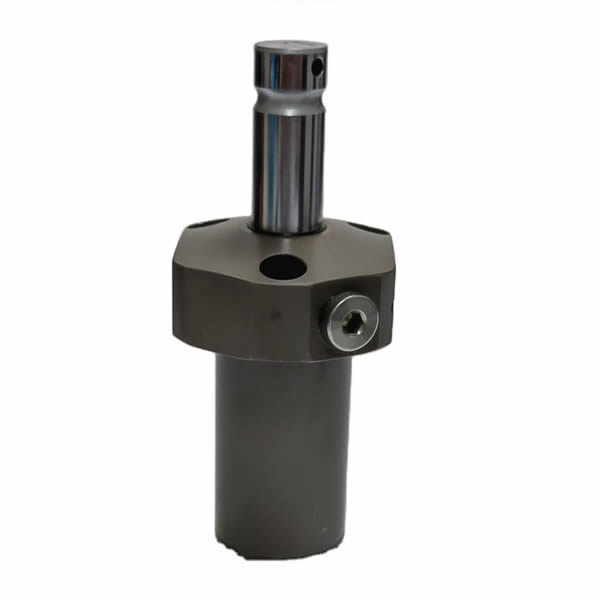

High pressure double-acting swing clamp with top flange -

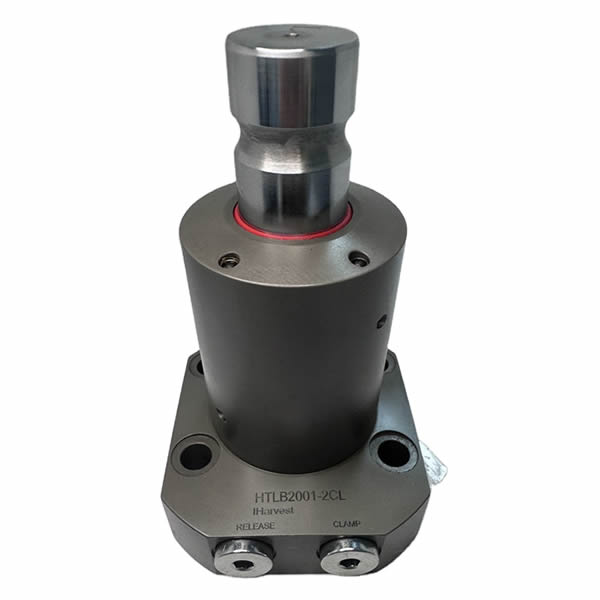

High pressure double-acting swing clamp with bottom flange
