Single-Acting Clamp Cylinder

FENZO's single-acting clamp cylinders are well suited for clamping workpieces, mainly in CNC machining operations. These workholding devices are available with operating pressure ranging from 1MPa to 35MPa.

Specifications
  • Operating pressure: 1MPa-35MPa
  • Stroke: 5mm-40mm
  • Inner diameter: Ø25, Ø32, Ø40, Ø50
Request a Quote
Features
  • These single-acting clamp cylinders have an integrated body and chromium-molybdenum steel piston rods that have been hardened. Thanks to FENZO's unique high-pressure cylinder processing technique, our hydraulic workholding cylinders are offered with an extended service life while the mechanical performance of the piston rod is well guaranteed, thus assisting users in lowering their operation costs.
  • Our threaded body push / pull cylinders are featured by small body size, light weight and compact structure, and available in diverse options of stroke to adapt to actual operation needs.
Download Detailed Information & Specifications Here

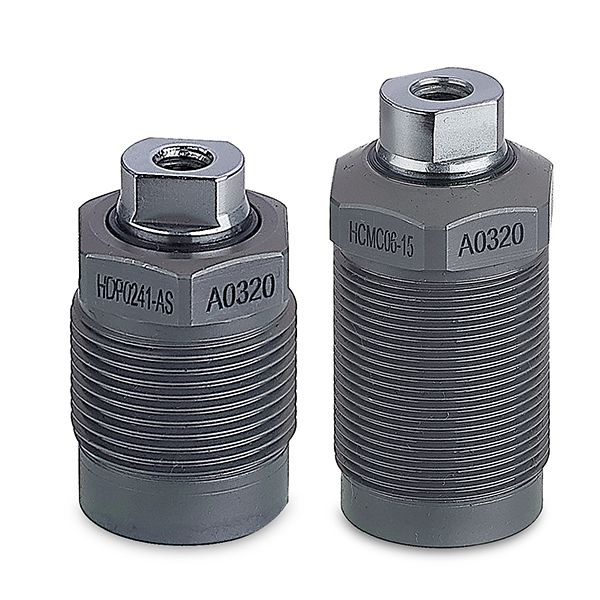

HCMC01, HCMC03, HCMC04, HCMC06, HCMC10, HCMC20, HCMC25, HCMC40, HCMC60
HDP0241, HDP0451

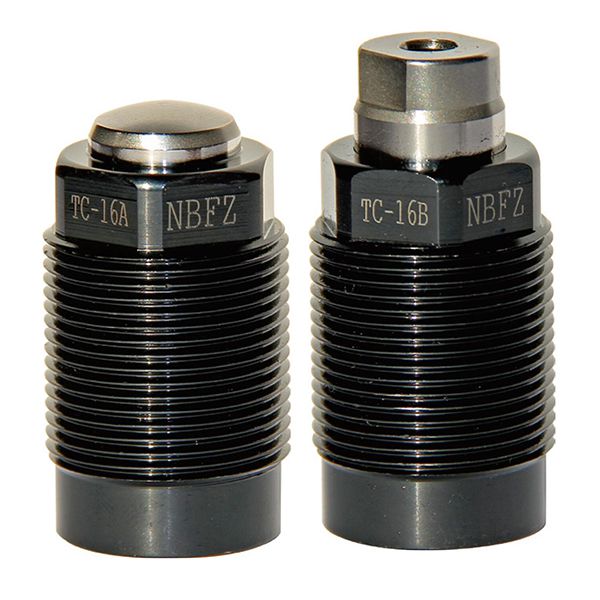

TC-12A, TC-16A, TC-20A, TC-25A

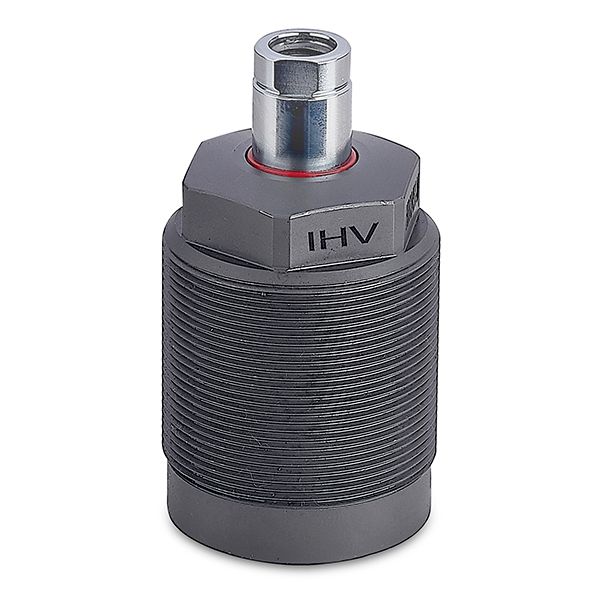

  • Push Type Single-Acting Threaded Cylinder
    Push Type Single-Acting Threaded Cylinder
  • Single-Acting Threaded Body Push Cylinder
    Single-Acting Threaded Body Push Cylinder
HCMD02, HCMD04, HCMD06, HCMD10, HCMD20, HCMD40, HCMD50, HCMD80
HDR0241, HDR0451, HDR0551, HDR0651
TC-12B, TC-16B, TC-20B, TC-25B

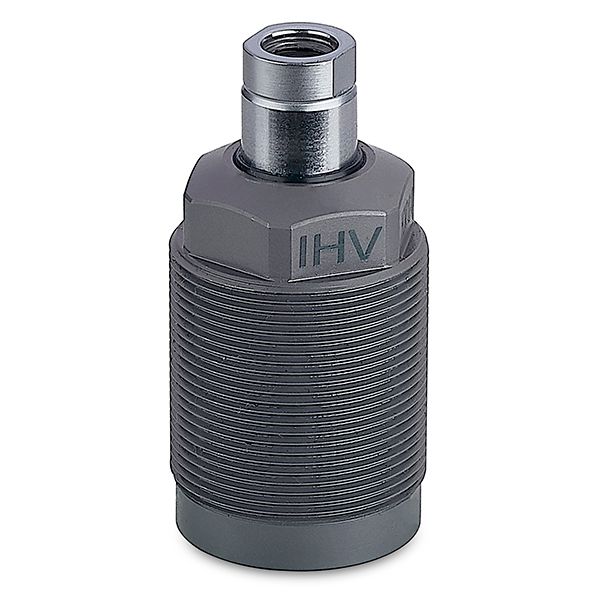

  • Threaded Body Single-Acting Pull Cylinder
    Threaded Body Single-Acting Pull Cylinder
  • Hydraulic Threaded Body Pull Cylinder
    Hydraulic Threaded Body Pull Cylinder
HDBA0250, HDBA0320, HDBA0400, HDBA0500, HDBC0250, HDBC0320, HDBC0400, HDBC0500

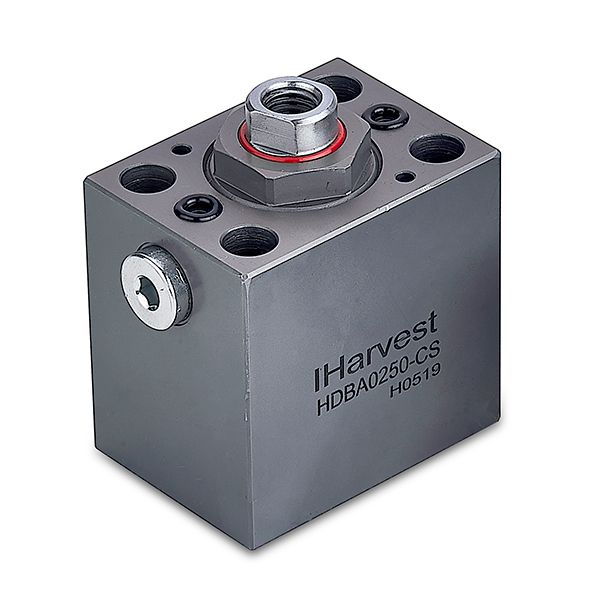

  • Block Push/Pull Cylinder
    Block Push/Pull Cylinder

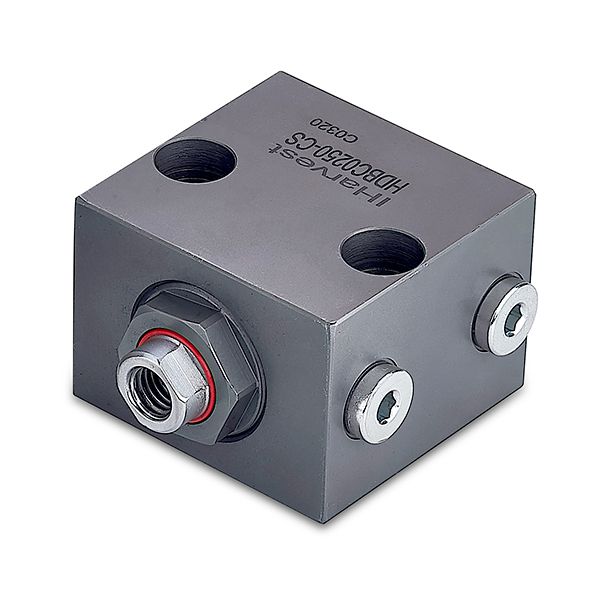

  • Block Linear Cylinder
    Block Linear Cylinder
