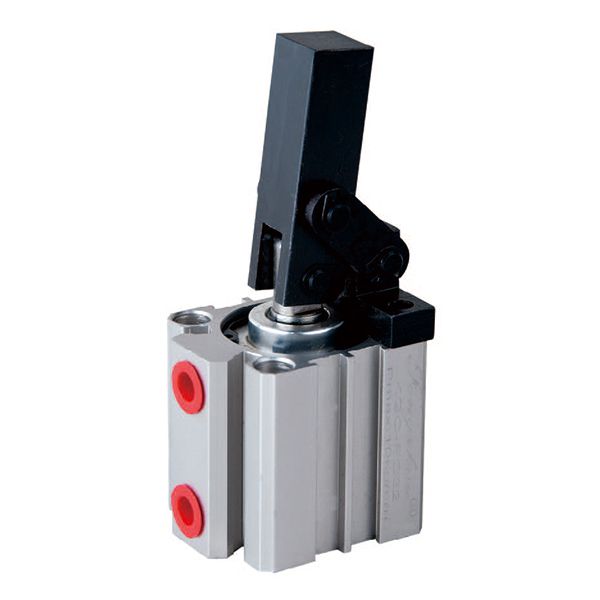

Pneumatic Link Clamp

Pneumatic Link Clamp

Our pneumatic link clamps are made to keep workpieces firmly in place while CNC machining is being done. Operating pressures ranging from 0.2MPa to 0.7MPa are supported by these workholding clamps.

Specifications
  • Operating pressure: 0.2MPa-0.7MPa
  • Inner diameter: Ø25, Ø32, Ø40, Ø50, Ø63
  • Mounting style: top flange/general piping port
Request a Quote
Features
  • High sealing performance
    High quality seal is used to efficiently prevent coolant and cutting chips from entering inside the link clamp.
  • Three-direction clamping lever
    Non-integrated structure of link mechanism and cylinder body allows for clamping in multiple directions with a single cylinder, so that specific operation needs can be flexibly satisfied.
  • High efficiency clamping
    The principle of lever is utilized to make it easier to hold the workpiece, significantly increasing the clamping efficiency.
Download Detailed Information & Specifications Here

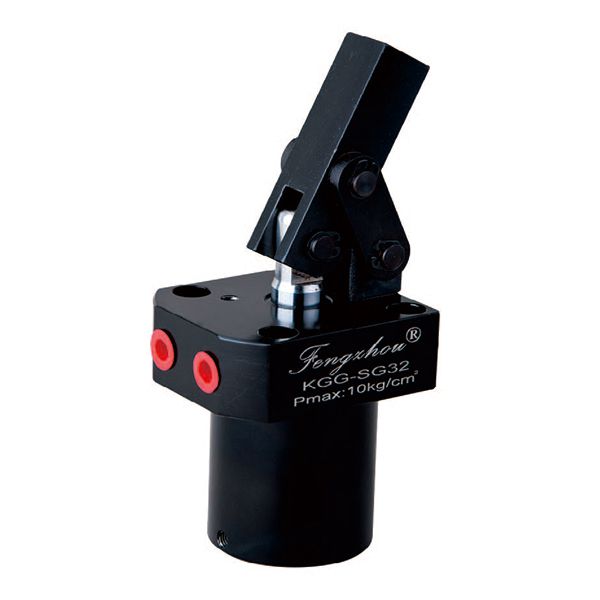

KGG-SG25, KGG-SG32, KGG-SG40, KGG-SG50, KGG-SG63
KGG-PG25, KGG-PG32, KGG-PG40, KGG-PG50, KGG-PG63
KGG-GY25, KGG-GY32, KGG-GY40, KGG-GY50, KGG-GY63
  • Block Type Pneumatic Link Clamp
    Block Type Pneumatic Link Clamp
  • Top Flange Pneumatic Link Clamp
    Top Flange Pneumatic Link Clamp
