Hydraulic Linear Cylinder

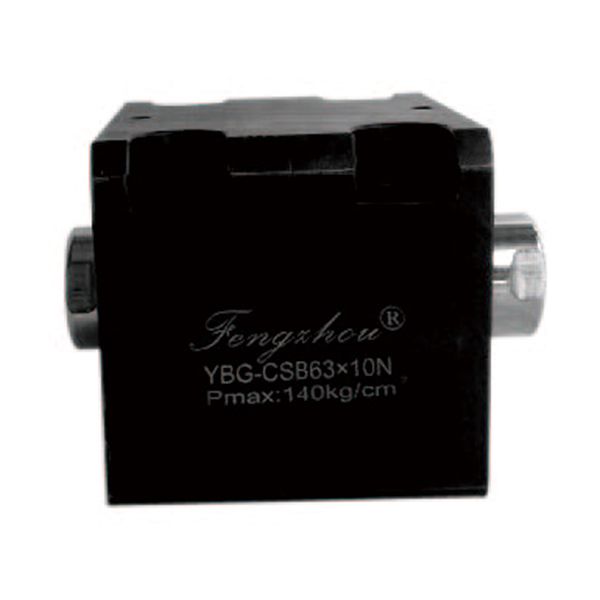

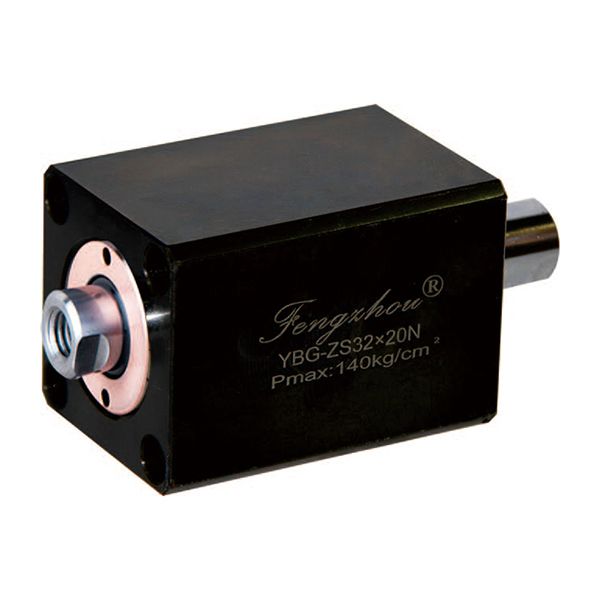

Push/Pull Cylinder
These hydraulic linear cylinders are used in CNC machining operations for securely positioning and firmly hold workpieces in place. The operating pressure ranges from 2MPa to 14MPa.
Specifications
- Operating pressure: 2MPa-14MPa
- Stroke: 5mm-100mm
- Inner diameter: Ø20, Ø24, Ø25, Ø26, Ø32, Ø35, Ø40, Ø45, Ø50, Ø55, Ø63, Ø68, Ø80
- Mounting style: top flange/axial connection
Features
- Optional piston rod ends

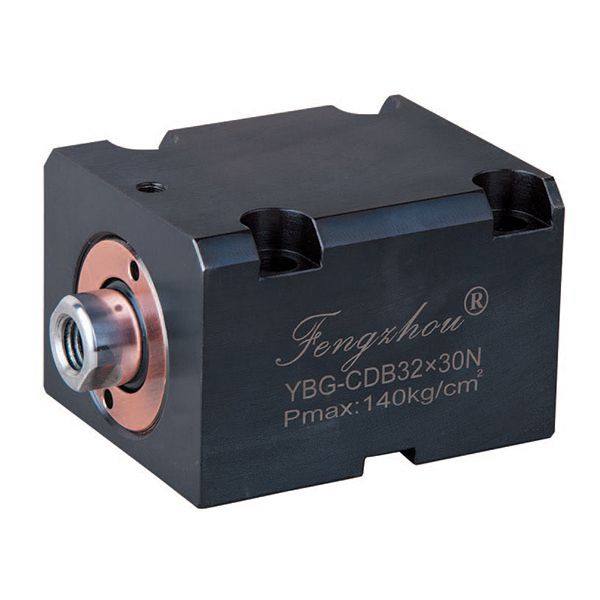

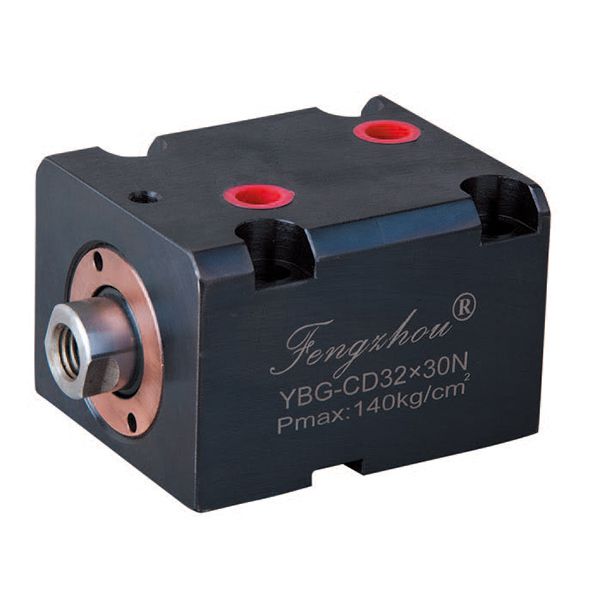

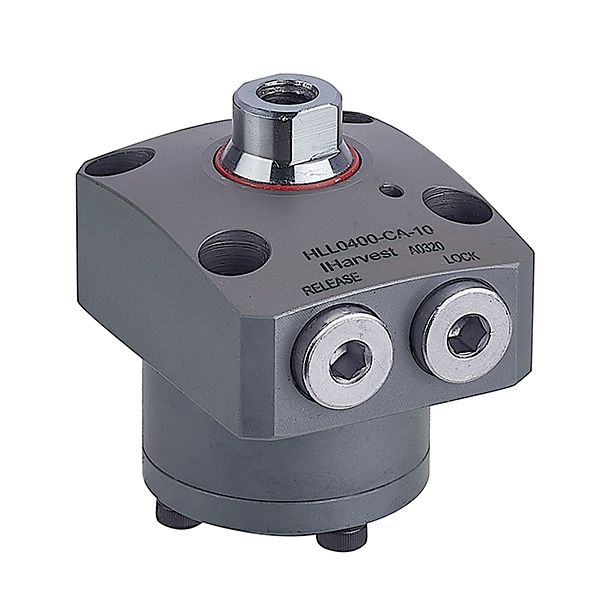

Thin type hydraulic clamping cylinder has two options of piston rod end, i.e. internal thread and external thread. Top flange hydraulic clamping cylinder has three options of piston rod end, i.e. internal thread with anti-rotation rod eye, external thread and piston rod eye.

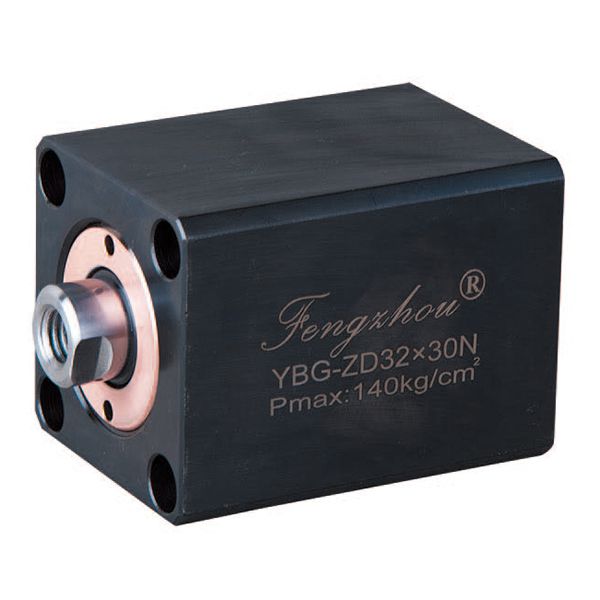

Internal thread
External thread
Internal thread with anti-rotation rod eye
External thread
Piston rod eye
- High sealing performance
High quality seal is used to efficiently prevent coolant and cutting chips from entering inside the clamping cylinder. - Space saving
The compact design of this workholding cylinder makes it space efficient and ideal for applications where installation space is limited.
