Pneumatic Swing Clamp
Our pneumatic swing clamps are designed for holding workpieces in place while CNC machining operation is being done. These workholding clamps can handle operating pressure ranging from 0.2MPa to 0.7MPa.
Specifications
- Operating pressure: 0.2MPa-0.7MPa
- Swing angle: 30°, 45°, 60°, 90°
- Inner diameter: Ø25, Ø32, Ø40, Ø50, Ø63
- Mounting style: top flange/bottom flange/external thread
Features
- High precision tapered connection
The clamping arm and piston rod are fitted through tapered connection, which makes arm disassembly easier while facilitating arm positioning up to 360 degrees with high positioning accuracy. - 3-point steel ball support
A 3-point steel ball support mechanism is used to provide a stable and fast swinging operation. - High sealing performance
High quality seal is used to efficiently prevent coolant and cutting chips from entering inside the swing clamp.
Download Detailed Information & Specifications Here
-

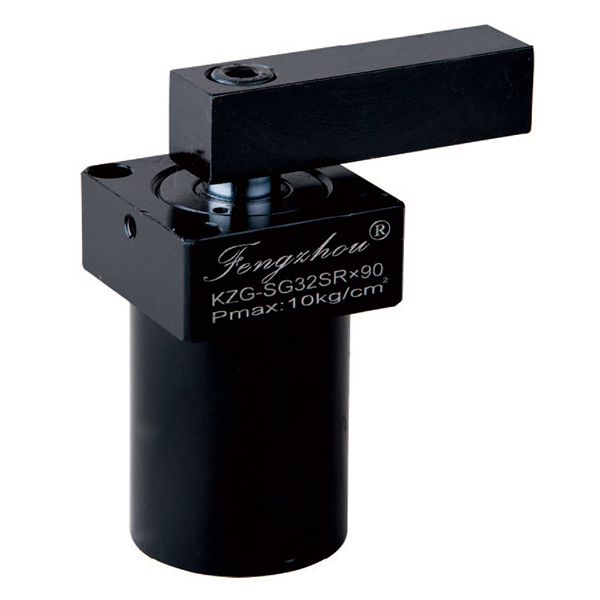

Top Flange Pneumatic Swing Clamp -

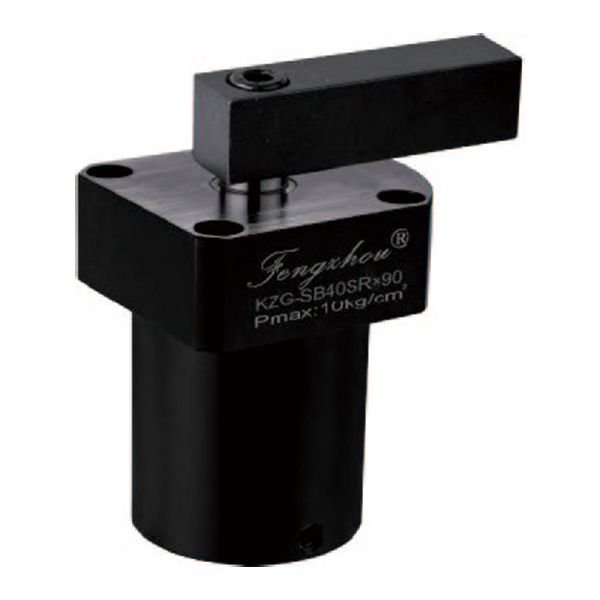

Top Flange Pneumatic Swing Clamp
-

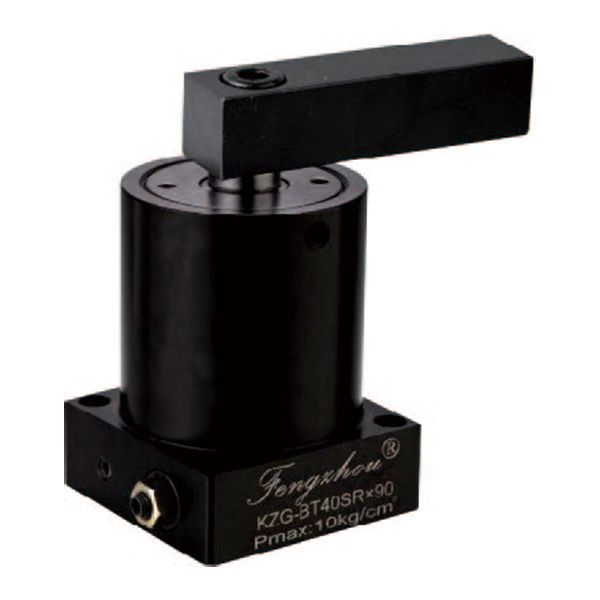

Bottom Flange Pneumatic Swing Clamp with Speed Adjustment -

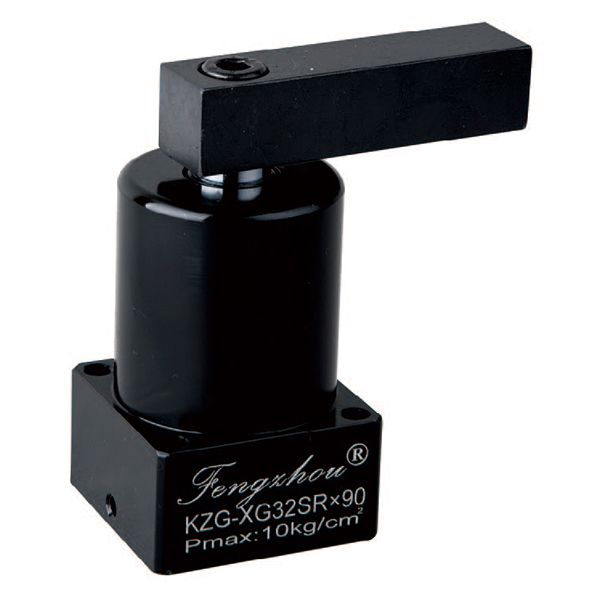

Bottom Flange Pneumatic Swing Clamp
-

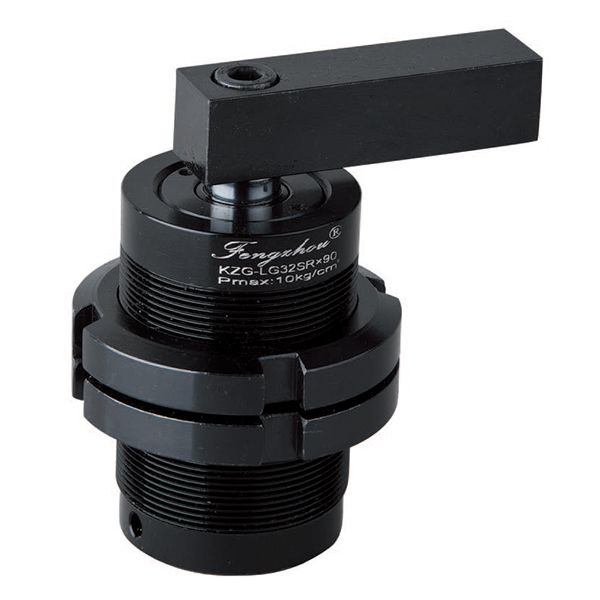

Pneumatic Swing Clamp with External Thread
-

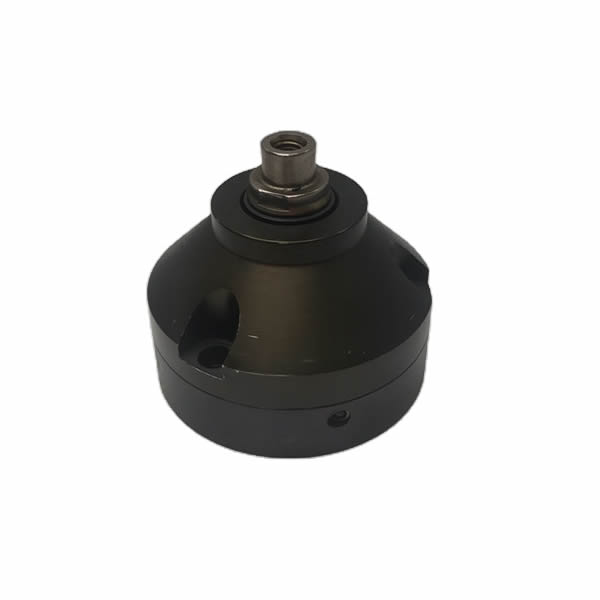

Compact Pneumatic Swing Clamp
