Hydraulic Control Valves

These hydraulic control valves are mainly used in hydraulic workholding devices to support and clamp a wide variety of workpieces for CNC machining. The operating pressure ranges from 1MPa to 35MPa.

Request a Quote

Features

Sequence valves are a type of one-way valves that operate based on pressure changes. When the pressure of hydraulic circuit reaches a certain value, the sequence valve opens to allow the flow of hydraulic oil.
Sequence valves are used to operate multiple cylinders in sequence, thereby reducing the number of oil supply ports.
The workpiece clamp and work support on one circuit can be used in sequence.

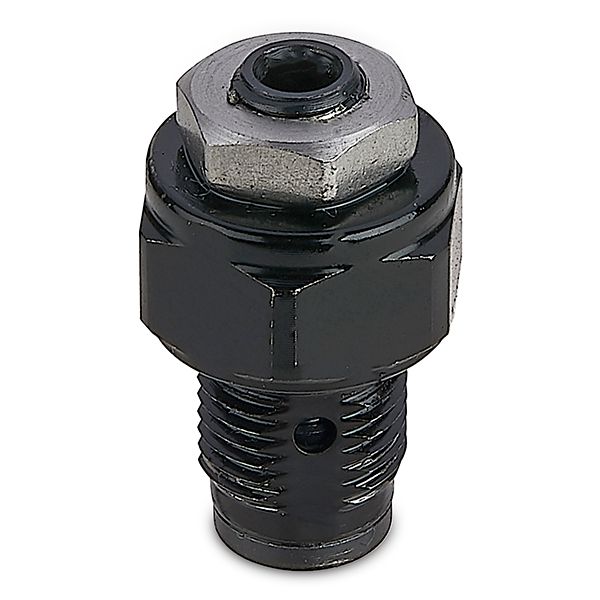

Flow control valves are a speed control valve that can be directly attached to hydraulic cylinders.
The time sequence valve is especially suited for clamping fixtures requiring hydraulic circuit that needs to be controlled in order, and with limited space for installation of clamping elements.

Specifications

Operating pressure: 1MPa-35MPa

Flow Control Valve
Sequence Valve with Piping Port
Time Sequence Valve
Sequence Valve
Sequence Valve with Hydraulic Circuit
Pressure Sequence Valve

Download Detailed Information & Specifications Here

Pressure Sequence Valve

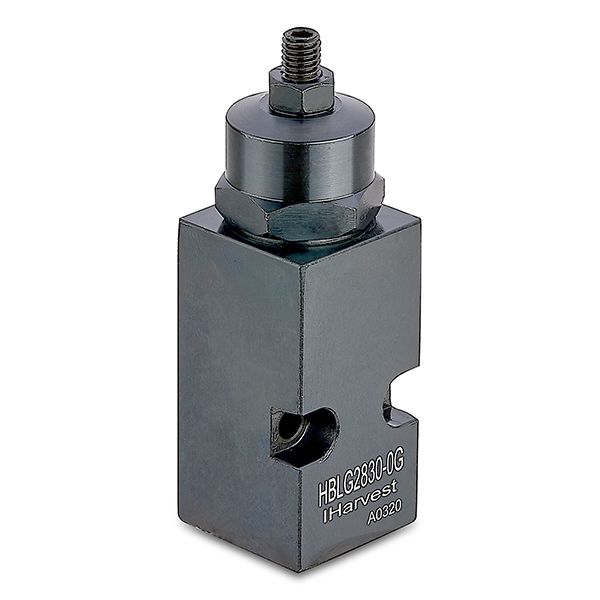

HBLG2830, HBLG2860

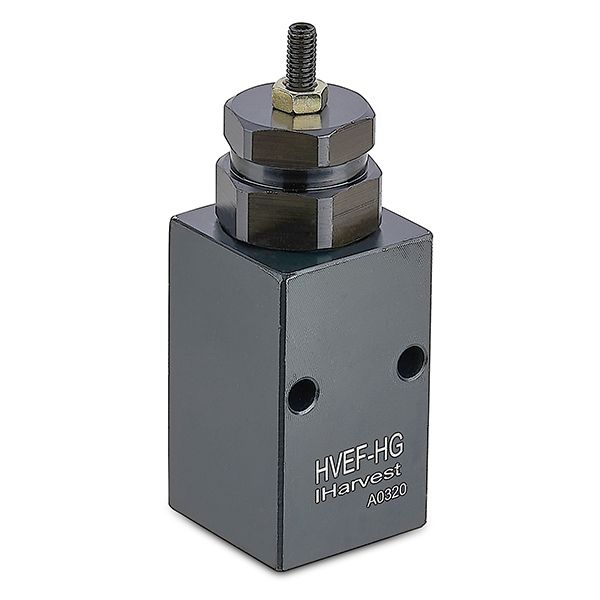

HVEF-LG, HVEF-LT

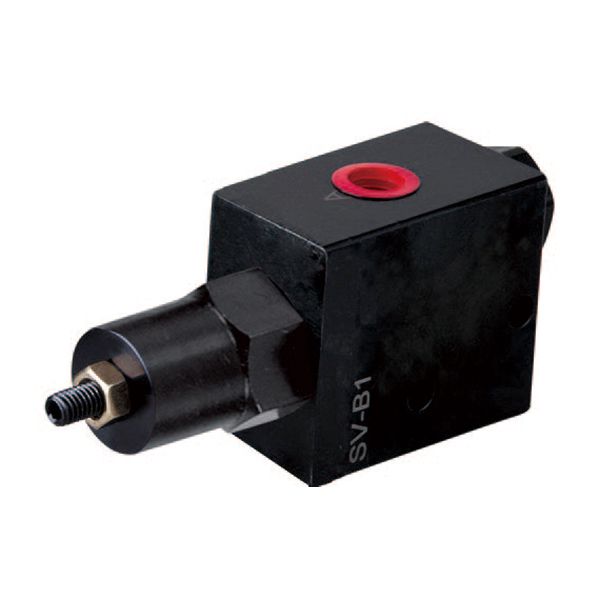

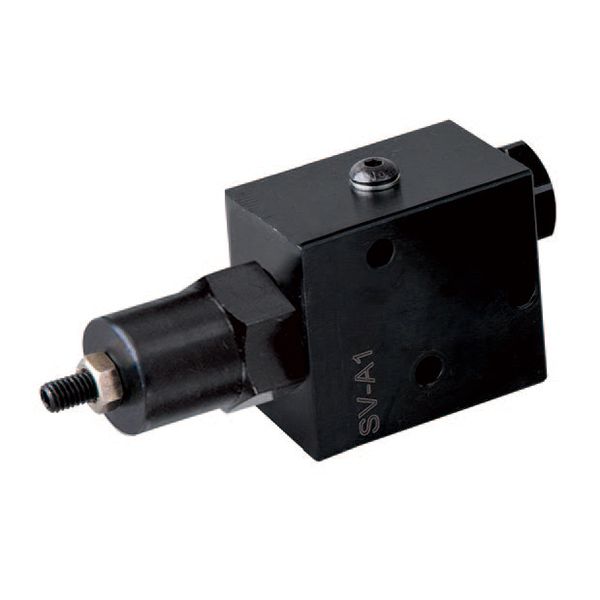

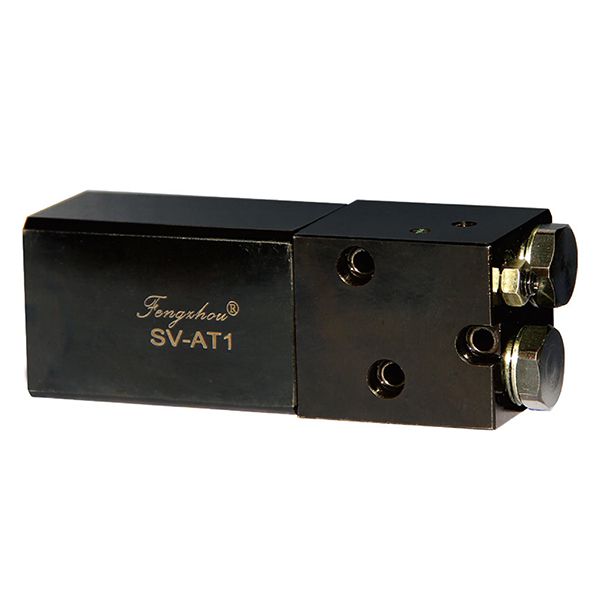

SV-A1, SV-A2, SV-B1, SV-B2, SV-AT1

Flow Control Valve (oil inlet throttling)

HVCF01, HVCF02, HVCF03, HVCF01S

HBZL0100-A, HBZL0200-A, HBZL0300-A

Flow Control Valve (oil outlet throttling)

HVCF01-O, HVCF02-O, HVCF03-O

HBZL0100-B, HBZL0200-B, HBZL0300-B
