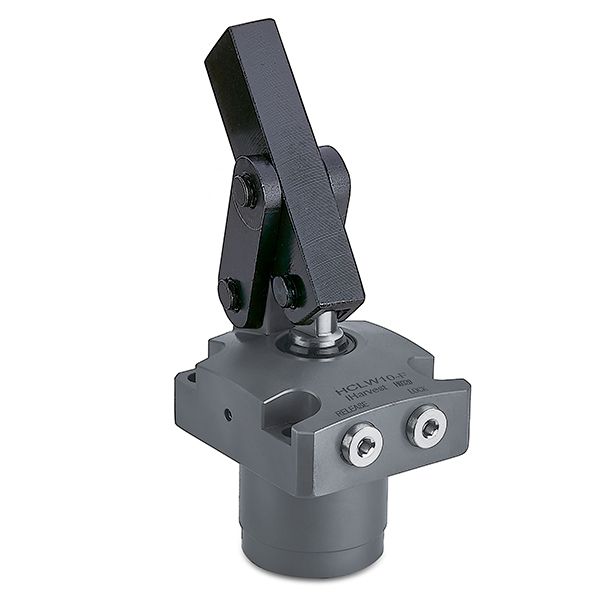

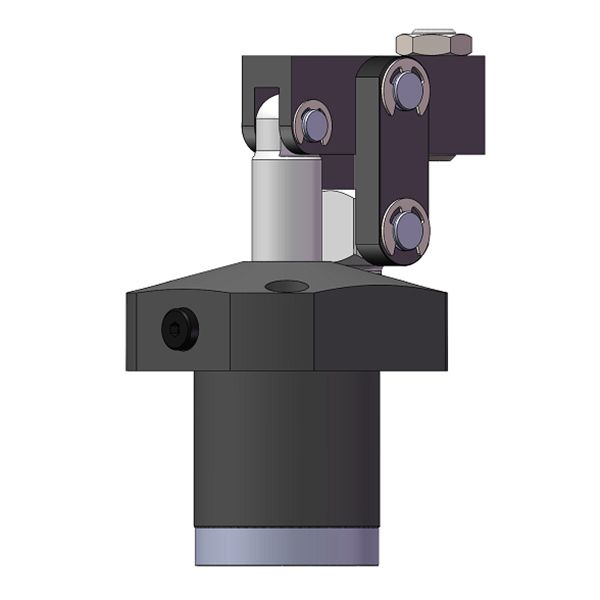

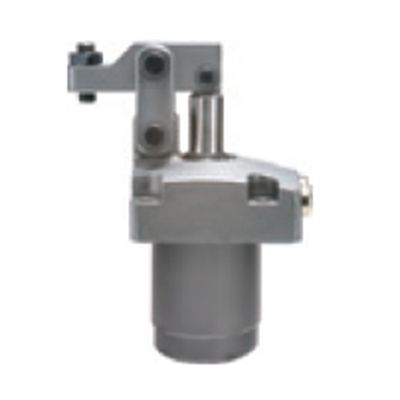

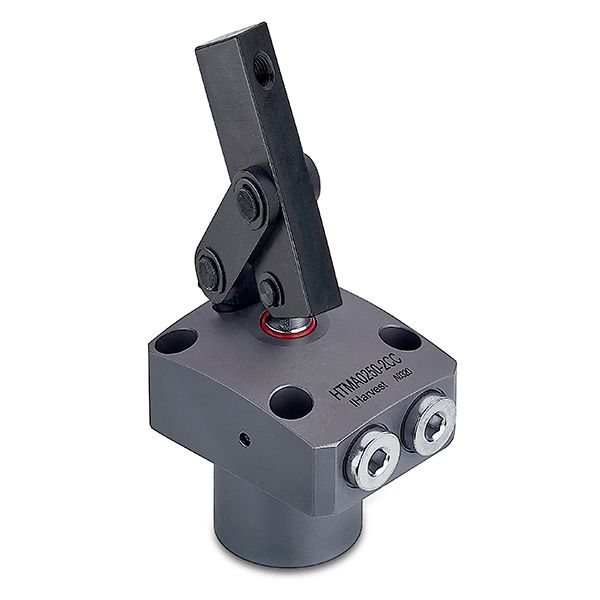

High Pressure Link Clamp
Our high pressure link clamps are designed for holding workpieces in place while CNC machining operation is being done. These workholding clamps can handle operating pressure ranging from 3.5MPa to 35MPa.
Specifications
- Operating pressure: 3.5MPa-35MPa
- Inner diameter: Ø11.5, Ø14, Ø18, Ø22, Ø28, Ø32, Ø36, Ø38
- Mounting style: top flange
Features
- Optimal design leads to high performance
The forged integral structure of link support and cylinder body offers high clamping force while giving a compact size. - Excellent seal prevents coolant entering
Unique sealing structure is designed to prevent high pressure coolant and cutting chips from entering inside the link clamp, achieving high sealing performance. - Speed control valve can be directly mounted
The adjustment of speed can be easily conducted by directly mounting speed control valve to improve synchronization. - Lever clamping is available in three directions
As viewed from the piping port side, Left (L), Center (C), Right (R). Three lever clamping directions provide high design flexibility.
Download Detailed Information & Specifications Here
-
35MPA Single-Acting Link Clamp -
High Pressure Single-Acting Link Clamp -
High Pressure Double-Acting Link Clamp
-
